Between Flange Kit Installation

Kit Removal

  1. Remove magnetic pickp by loosening lock nut using 3/4" thin wall socket. Then unscrew from meter body. This procedure will help to prevent pickup damage during the repair procedure.
  2. Remove socket cap screws from both ends of meter using hex key
  3. Remove upstream and downstream vanes, tapping with soft rod if necessary to drive out vanes.
  4. Remove rotor from body.
  5. Clean the meter body bore as required bringing it back to a like new condition.
  6. Clean screw holes and counter bore for vane to allow the vane to properly seat.

Kit Installation

  1. Install downstream vane so arrow on vane corresponds with directional arrow on the meter body. The directional arrow and notch on the vane should align with the top of the meter body where the conduit hub is located.
  2. Install the downstream socket head cap screws.
  3. Install rotor being sure the arrow is properly aligned, and the shaft seated in the vane bushing.
  4. Install upstream vane, aligning the vane the same as the downstream vane. Spin the rotor to allow shaft to easily enter the vane bushing. DO NOT USE FORCE TO PUSH THE VANE BEARING OVER THE ROTOR SHAFT.
  5. Install upstream socket head cap screws.
  6. Make sure the rotor spins freely before installing the meter.
  7. Attach plastin calibration tag around the conduit hib and cut off excess strap length flush with tag.
  8. Install magnetic pickup as follows:
      Clean pickup hub threads and pickup threads as needed.
    • Screw in the pickup by hand until it bottoms out.
    • Back off 1/4 turn and tighten lock nut with 3/4" thin wall socket.

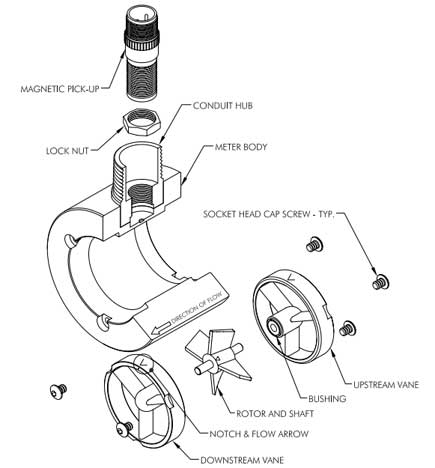

One of the most popular products Electronic Data Devices Inc. sells is our Between Flange and Join Repair kit, which has helped many businesses in the oil industry. Here you will find step-by-step installation instructions to simply the process. Additionally, there is a drawing at the bottom of the page to provide you with a visual.

Electronic Data Devices Inc. has provided practical solutions to many businesses in the Permian Basin. Since 1980, we have been a leading manufacturer of Turbine Flow Meters and Kits. If you would like to learn more about how our products can help your business, or if you need help installing a kit, please contact us at today.
